HSM keys & operations
In addition to managing its own keys, Cosmian KMS can act as a proxy to an HSM to store and manage keys in the HSM.
- HSM keys
- Creating a KMS key wrapped by an HSM key
- Using the wrapped KMS key
- The Unwrapped Objects Cache
- HSM KMIP operations
HSM keys¶
HSM keys are prefixed keys. They are created with a unique identifier that is prefixed by the hsm keyword and the
slot number in the form:
For instance, the key hsm::1::mykey is stored in the HSM slot 1 with the identifier mykey. Technically, the
identifier is stored in the LABEL field of the key object in the HSM.
Non-prefixed keys are considered KMS keys and are stored in the KMS database.
Creating a KMS key wrapped by an HSM key¶
KMS Keys can be created wrapped by an HSM key, either manually or automatically.
Manually using the CLI¶
To create a KMS key wrapped by an HSM key, the --wrapping-key-id argument must be used to specify the unique
identifier of the HSM key.
The user creating the key must be the HSM admin (see above) or have been granted the Encrypt operation on the HSM key.
For instance, the following command creates a 256-bit AES key wrapped by the HSM RSA (public) key
hsm::4::my_rsa_key_pk:
> cosmian kms sym keys create --algorithm aes --number-of-bits 256 --sensitive \
--wrapping-key-id hsm::4::my_rsa_key_pk my_sym_key
The symmetric key was successfully generated.
Unique identifier: my_sym_key
The symmetric key is now stored in the database encrypted (wrapped) by the HSM key. The encryption happened in the HSM.
Manually using the Web UI¶

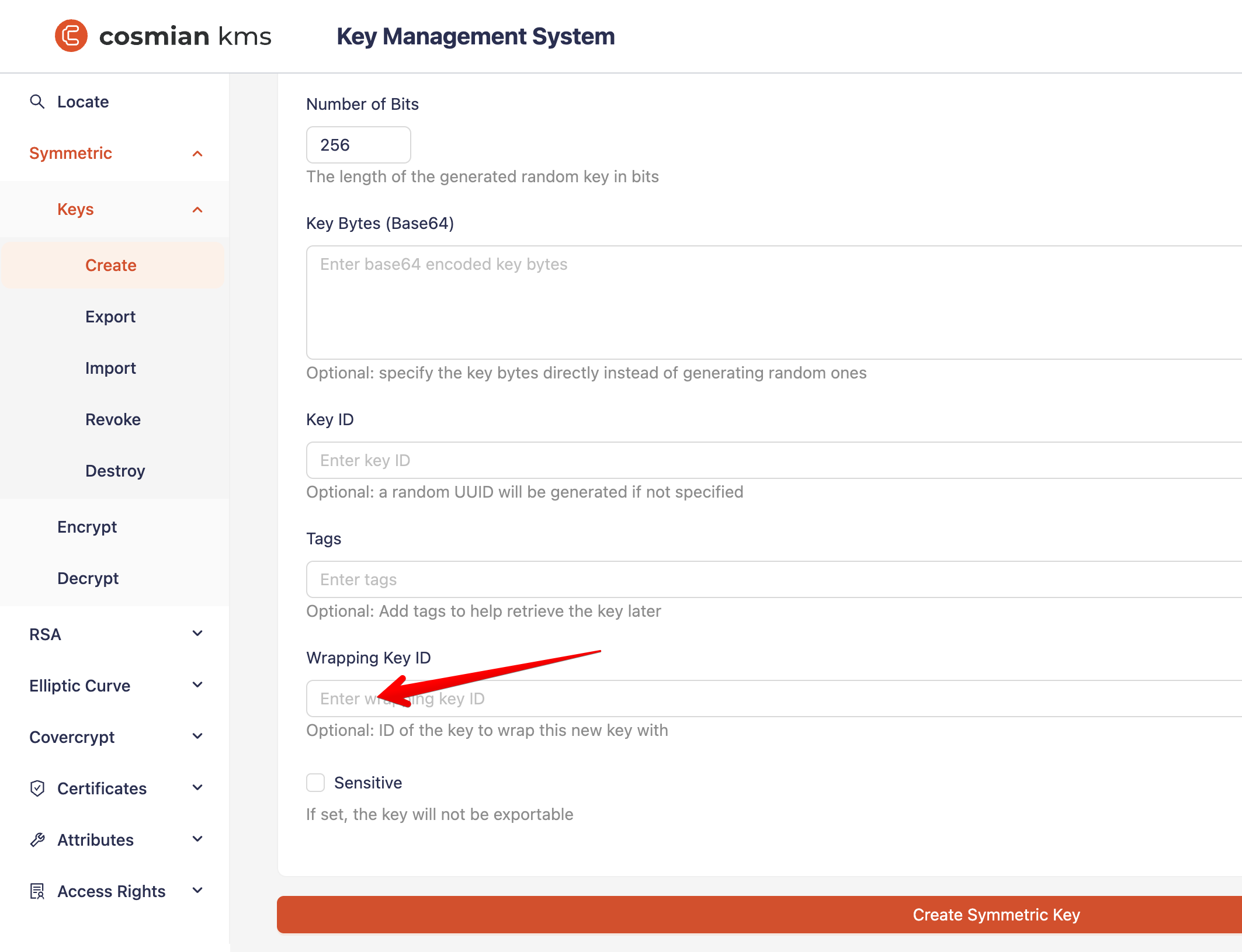

In the web UI, fill in the Wrapping Key ID field with the unique identifier of the HSM key.
Automatically using the server configuration¶
The KMS server can automatically wrap all KMS keys with a specific HSM key.
This is done by setting the key_encryption_key property in the TOML server configuration file
or using the corresponding command line switch.
Using the wrapped KMS key¶
The symmetric key created above can now be used to encrypt and decrypt data, and the KMS will transparently unwrap the key using the HSM key.
This unwrapping will happen once, and the unwrapped symmetric key will be cached in memory for later operations; no clear-text symmetric key will be stored in the KMS database.
Small data: encrypting server-side¶
For example, to encrypt a message with the key my_sym_key server-side, the following command can be used:
> cosmian kms sym encrypt --key-id my_sym_key /tmp/secret.txt
The encrypted file is available at "/tmp/secret.enc"
To decrypt a message with the key my_sym_key, the following command can be used:
> cosmian kms sym decrypt --key-id my_sym_key --output-file /tmp/secret.recovered.txt /tmp/secret.enc
The decrypted file is available at "/tmp/secret.recovered.txt"
Large data: encrypting client side with key wrapping¶
To encrypt a large file with the key my_sym_key client side, the following command can be used:
>cosmian kms sym encrypt --key-id my_sym_key_2 --data-encryption-algorithm aes-gcm \
--key-encryption-algorithm rfc5649 /tmp/large.bin
The encrypted file is available at "/tmp/large.enc"
In this case, an ephemeral symmetric key (the Data Encryption Key, DEK) is generated and used to encrypt the data.
The DEK is then encrypted/wrapped with RFC4659 (a.k.a NIST AES Key Wrap) with the key my_sym_key,
called the Key Encryption Key, KEK.
The wrapping of the DEK by the KEK is stored at the beginning of the encrypted file.
At rest, in the KMS database, my_sym_key is stored encrypted/wrapped with the HSM key hsm::4::my_rsa_key_pk.
To decrypt a large file with the KEK my_sym_key client side, the following command can be used:
> cosmian kms sym decrypt --key-id my_sym_key_2 --data-encryption-algorithm aes-gcm \
--key-encryption-algorithm rfc5649 --output-file /tmp/large.recoverd.bin /tmp/large.enc
The decrypted file is available at "/tmp/large.recoverd.bin"
The Unwrapped Objects Cache¶
The unwrapped cache is a memory cache, and it is not persistent. The unwrapped cache is used to store unwrapped objects that are fetched from the database.
When a wrapped object is fetched from the database, it is unwrapped and stored in the unwrapped cache. Further calls to the same object will use the unwrapped object from the cache until the cache expires.
The time in minutes after an unused object is evicted from the cache is configurable
using the unwrapped_cache_max_age setting. The default is 15 minutes.
When HSM keys wrap objects, a long expiration time will reduce the number of calls made to HSM to unwrap the object. However, increasing the cache time will increase the memory the KMS server uses and expose the key in clear text in the memory for a longer time.
HSM KMIP operations¶
Some KMIP operations can be performed directly via the KMS server API on the HSM keys.
Create¶
Create a new key in the HSM. The key unique must be provided on the request and must follow the
hsm::<slot_number>::<key_identifier> format described above.
Only the user identified by the --hsm-admin argument can create keys in the HSM.
RSA and AES keys are supported.
When creating an RSA key, the key_identifier will be that of the private key. The corresponding public key will be
automatically created and stored in the HSM with the same key_identifier but with the _pk suffix, for example,
the public key of the hsm::1::mykey private key will be created with a unique identifier has::1::mykey_pk.
Create an RSA 4096-bit key with the Cosmiian CLI:
❯ cosmian kms rsa keys create --size_in_bits 4096 --sensitive hsm::4::my_rsa_key
The RSA key pair has been created.
Public key unique identifier: hsm::4::my_rsa_key_pk
Private key unique identifier: hsm::4::my_rsa_key
Create an AES 256-bit key with the Cosmiian CLI:
❯ cosmian kms sym keys create --algorithm aes --number-of-bits 256 --sensitive hsm::4::my_aes_key
The symmetric key was successfully generated.
Unique identifier: hsm::4::my_aes_key
Keys should be flagged as sensitive when created in the HSM, so that the private key or symmetric key cannot be
exported (see below Get and Export).
Note: HSM keys do not support object tagging in this release.
Destroy¶
Contrary to the KMS keys, HSM keys must not be revoked before being destroyed. The Destroy operation will remove the
key from the HSM.
Only the user identified by the --hsm-admin argument or a user who has been granted the Destroy operation (by the
HSM admin) can destroy keys in the HSM.
To destroy the key hsm::4::my_rsa_key, the following command can be used:
❯ cosmian kms rsa keys destroy --key-id hsm::4::my_rsa_key
Successfully destroyed the key.
Unique identifier: hsm::4::mykey
To destroy the corresponding public key hsm::4::my_rsa_key_pk, the following command can be used:
❯ cosmian kms rsa keys destroy --key-id hsm::4::my_rsa_key_pk
Successfully destroyed the object.
Unique identifier: hsm::4::my_rsa_key_pk
Get & Export¶
The Get and Export operations are used to retrieve the key material from the HSM.
Only the user identified by the --hsm-admin argument or a user who has been granted the Get operation (by the HSM
admin) can retrieve keys from the HSM.
Private or symmetric keys marked as sensitive cannot be retrieved from the HSM.
The public key of a key pair can always be retrieved.
To export the public key hsm::4::my_rsa_key_pk in PKCS#8 PEM format, the following command can be used:
❯ cosmian kms rsa keys export --key-id hsm::4::my_rsa_key_pk --key-format pkcs8-pem /tmp/pubkey.pem
The key hsm::4::my_rsa_key_pk of type PublicKey was exported to "/tmp/pubkey.pem"
Unique identifier: hsm::4::my_rsa_key_pk
To export the private key hsm::4::mykey in PKCS#8 PEM format, the following command can be used:
❯ cosmian kms rsa keys export --key-id hsm::4::my_rsa_key --key-format pkcs8-pem /tmp/privkey.pem
The key hsm::4::my_rsa_key of type PrivateKey was exported to "/tmp/privkey.pem"
Unique identifier: hsm::4::my_rsa_key
To export the symmetric key hsm::4::my_aes_key in raw format (i.e., raw bytes),
the following command can be used:
❯ cosmian kms sym keys export --key-id hsm::4::my_aes_key --key-format raw /tmp/symkey.raw
The key hsm::4::my_aes_key of type SymmetricKey was exported to "/tmp/symkey.raw"
Unique identifier: hsm::4::my_aes_key
Encrypt¶
Symmetric keys and public keys can be used to encrypt data. Only the user identified by the --hsm-admin argument or a
user granted the Encrypt operation (by the HSM admin) can encrypt data with keys stored in the HSM.
For symmetric keys, only AES GCM is supported. CKM_RSA_PKCS_OAEP and the now-deprecated, but still widely used, CKM_RSA_PKCS (v1.5) are supported for RSA keys. The hashing algorithm is fixed to SHA256.
When using RSA, the maximum message size in bytes is:
- PKCS#1 v1.5: (key size in bits / 8) - 11
- OAEP: (key size in bits / 8) - 66
To encrypt a message with the public key hsm::4::my_rsa_key_pk and the CKM RSA PKCS OAEP algorithm, the following
command can be used:
❯ cosmian kms rsa encrypt --key-id hsm::4::my_rsa_key_pk --encryption-algorithm ckm-rsa-pkcs-oaep \
/tmp/secret.txt
The encrypted file is available at "/tmp/secret.enc"
To encrypt a message using AES GCM with the symmetric key hsm::4::my_aes_key, the following command can be used:
❯ cosmian kms sym encrypt --key-id hsm::4::my_aes_key --data-encryption-algorithm aes-gcm /tmp/secret.txt
The encrypted file is available at "/tmp/secret.enc"
Decrypt¶
Symmetric keys and private keys can be used to decrypt data. Only the user identified by the --hsm-admin argument or a
A user granted the Decrypt operation (by the HSM admin) can decrypt data with keys stored in the HSM.
For symmetric keys, only AES GCM is supported. CKM_RSA_PKCS_OAEP and the now-deprecated, but still widely used, CKM_RSA_PKCS (v1.5) are supported for RSA keys. The hashing algorithm is fixed to SHA256.
To decrypt a message with the private key
key hsm::4::hsm::4::my_rsa_key and the CKM RSA PKCS OAEP algorithm, the following command can be used:
❯ cosmian kms rsa decrypt --key-id hsm::4::my_rsa_key --encryption-algorithm ckm-rsa-pkcs-oaep \
--output-file /tmp/secret.recovered.txt /tmp/secret.enc
The decrypted file is available at "/tmp/secret.plain"
To decrypt a message using AES GCM with the symmetric key hsm::4::my_aes_key, the following command can be used:
