Veracrypt integration with Cosmian KMS¶

The Cosmian KMS is integrated with Veracrypt disk encryption using the Cosmian KMS PKCS#11 provider library.

Veracrypt is a free, open-source disk encryption software for Windows, macOS, and Linux, and is a successor to TrueCrypt, certified by ANSSI. Veracrypt has undergone a formal security evaluation by the BSI.

Using the Cosmian KMS PKCS#11 provider library, Veracrypt can use keys stored in the KMS to encrypt and decrypt volumes.

Installing the PKCS#11 provider library on Veracrypt¶

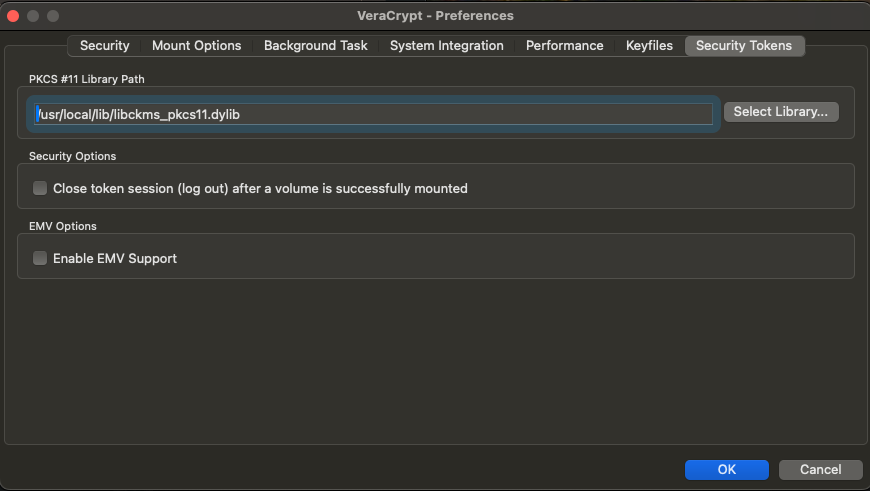

Go to Veracrypt Settings > Security Tokens and use the Select Library... button to select the Cosmian KMS PKCS#11 library for your operating system. Then click OK.

Configuring access to the KMS¶

The PKCS#11 provider library uses the same configuration file as the CLI.

See Authenticating users to the KMS to learn how to configure the KMS to use OpenID Connect or certificate authentication. Please note that the KMS can also manage the machines’ certificates.

Here is an example configuration file for the PKCS#11 provider library accessing the KMS using a PKCS#12 file for authentication.

[kms_config.http_config]
server_url = "https://kms.acme.com:9999"
ssl_client_pkcs12_path = "./certificates/machine123.acme.p12"
ssl_client_pkcs12_password = "machine123_pkcs12_password"

To use Open ID connect, install the KMS CLI from https://package.cosmian.com/kms/ and use the ckms login command to authenticate to the KMS first.

Logging¶

The PKCS#11 module logs to the cosmian-pkcs11.log file in the same .cosmian subdirectory of the configuration file.

The COSMIAN_PKCS11_LOGGING_LEVEL environment variable controls logging of the PKCS#11 module. The logging level can be set to trace, debug, info, warn, or error, and defaults to info when not set.

Creating keys to use with Veracrypt¶

The keys used to encrypt Veracrypt volumes are created in the KMS as Symmetric Keys and must carry at least two tags, one being disk-encryption. The other tag(s) will be displayed to the user in the Veracrypt GUI when selecting the key to use to mount the volume. The other tag(s) can also be used to identify the key when using Veracrypt CLI.

To create a key using the CLI, which will be shown as vol1to the user, use the following command:

ckms sym keys create -t disk-encryption -t vol1

Do not forget to grant Get access to the key to the machine that will mount the Veracrypt volume.

ckms access-rights grant <MACHINE_CN> <KEY_ID> get

where <MACHINE_CN> is the Common Name of the certificate used to authenticate the machine to the KMS and <KEY_ID> is the ID of the key created in the previous step.

Mounting a Veracrypt volume using the GUI¶

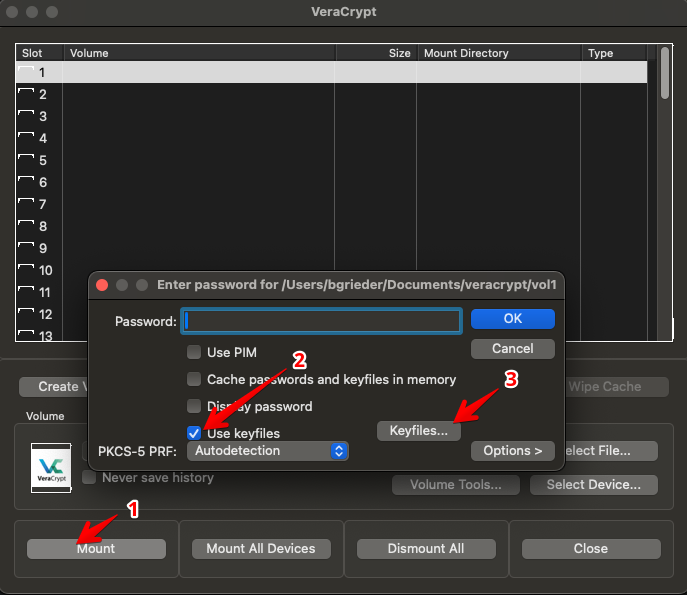

When mounting a Veracrypt volume, select the Use keyfiles option and select the key to use to mount the volume using the Keyfiles... button.

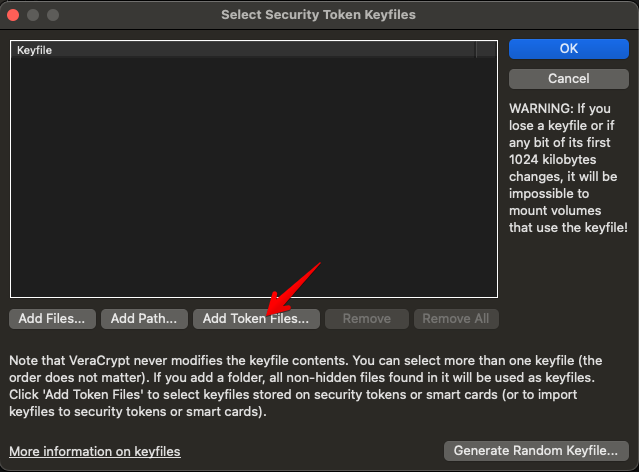

Click Add Token Files...

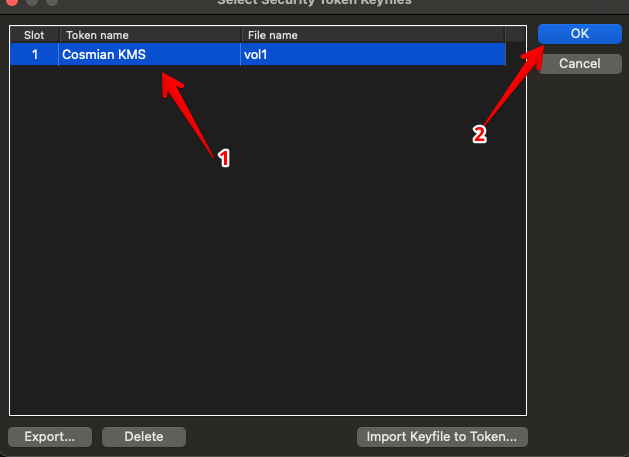

Select the key to use to mount the volume and click OK

Mounting a Veracrypt volume using the CLI¶

When mounting a Veracrypt volume using the CLI, use the -k option followed by token://slot/1/file/vol1 where vol1 is the other tag chosen to identify the key in the KMS.

Revoking the access to a key¶

To revoke access to the key, either

remove the access to the key for the machine using the following command:

ckms access-rights revoke <MACHINE_CN> <KEY_ID> get

revoke the key itself using the following command:

ckms sym keys revoke <KEY_ID>

Note: a revoked key can never be reused.

Rotating a key¶

To rotate a key,

Create a new key.
Grant access to the machine to the new key.
Perform the key rotation/change in the Veracrypt GUI or CLI.
Revoke the access to the old key for the machine.
Optionally revoke the old key itself.
